| 產品描述 |
| 1. 形狀類似PA的封閉式線標，頂上帶有橢圓形透明標簽袋，可插入標簽紙。 |
| 2. 波形設計加上兩邊的卡槽可以有效地減少套線時產生的摩擦力，更易于安裝。 |
| 3. 拿住標簽袋輕輕一按，PFC或者PF標簽紙就可輕松插入。 |
| 4. 標簽袋的彈性設計既能保護插入的標簽紙又能固定其位置。 |
| 5. 標簽紙或者標簽牌可以在現場用簡易標卡打印機或者激光、矩陣打印機打印。 |
| PRODUCT OVERVIEW |

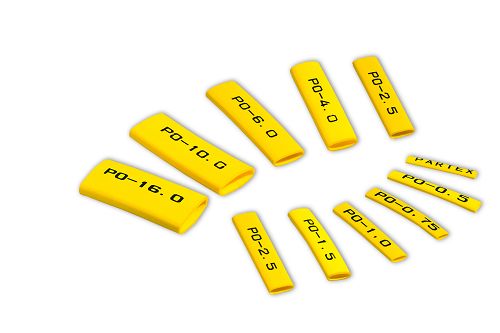

| 1. Holder similar to PARTEX PA profile with oval shaped pocket for marker tag, |
| 2. The new improved bellow design with grooves decreases the friction when pushing the sleeve on to the wire. |
| 3. Fast and easy insertion of marker tag PFC and PF by applying pressure once on marker pocket. |
| 4. The marker pocket’s resilient design protects and fastens marker tag, |
| 5. The marking label/tag are printed on site either by easy-to-use card printer, laser or matrix printers. |
| 數據參數 |
| 材質：ZEREX材質，無鹵、無鎘無硅。 |
| 顏色：PTZ+標簽管為黃色，標簽袋為透明色。 |
| 工作溫度：-30℃ ～ +90℃ |
| 防火等級：UL94-V0 |
| 其他性能：阻燃、抗化學腐蝕、抗伽瑪射線、抗紫外線。 |
| SPECIFICATION |
| MATERIAL: ZEREX, free of halogen, cadmium and silicon. |
| COLOUR: PTZ+ has a yellow colourd basic sleeve; the pocket is transparent. |
| TEMPERATURE: -30℃ ～ +90℃ |
| FLAMMABILITY RESISTANCE: UL94-V0 |
| PROPERTIES: Self-extinguishing, good resistance to chemicals, gamma and UV radiation. |
