Part# Q"ty Description
1 20131950142 1 16MEG CPU REV.0CR
2 MVME 130DOF 1 MODEL:CACHE-1
3 MVME 131 2 VME Board
4 MVME 147 2 Single Board Computer
5 MVME 147-012 1 68030 CPU, 25Mhz, 8MB memory
6 MVME 147-013 7 68030 CPU, 25Mhz, 16MB memory
7 MVME 147-023 6 PROCESSOR BOARD
8 MVME 147SA-1 4 68030 CPU, 25MHZ, 8MB, SCSI
9 MVME 147SA-2 2 32MHz SBC
10 MVME 147SB-1 3 PROCESSOR BOARD
11 MVME 162-031 1 Board
12 MVME 162-12 1 Board
13 MVME 162-210 2 Board
14 MVME 162-522A 2 VME Board
15 MVME 162-523 2 CPU Board
16 MVME 162P244LE 2 68040 CPU, 25Mhz, 16MB, 2 SIO, 4 DMA IP, Ethernet
17 MVME 162P344SE 2 Board
18 MVME 167 4 VME CPU BOARD 68040/25HZ W/16MB RAM
19 MVME 167-02A 2 CONTROL BOARD
20 MVME 167-02B 2 Board
21 MVME 167-03B 7 VMEbus VME Board
22 MVME 167-04A 6 68040U CPU, 25Mhz, 32MB
23 MVME 167B 1 PROCESSOR BOARD
24 MVME 177-004 4 68060 CPU, 50Mhz, 128KB, 32MB
25 MVME 177-005 4 68060 CPU, 50Mhz, 128KB, 64MB
26 MVME 188 1 16MB Memory Board
27 MVME 224-2 2 Board
28 MVME 332XT 4 68010 Intelligent Communications Controller
29 MVME 332XTP 1 SINGLE BOARD
30 MVME 332XTS 1 8-Channel Intelligent Serial Communications Controller Board
31 MVME 333-2 3 Serial Controller Card
32 MVME 334 2 Single Board Computer
33 MVME 334A 3 SBC Board
34 MVME 337-1 2 Single Board Computer
35 MVME 374 1 Ethernet Controller Board
36 MVME 374-1 3 Ethernet Controller Board
37 MVME 376 1 Ethernet Controller Board
38 MVME 510-051 2 Board
39 MVME 705-1 1 Adapter 331/333, 3-Channel with RS232
40 MVME 709-1 1 Board
41 MVME 710B 1 ADAPTER, 332XT, 8 CHANNEL, SERIAL

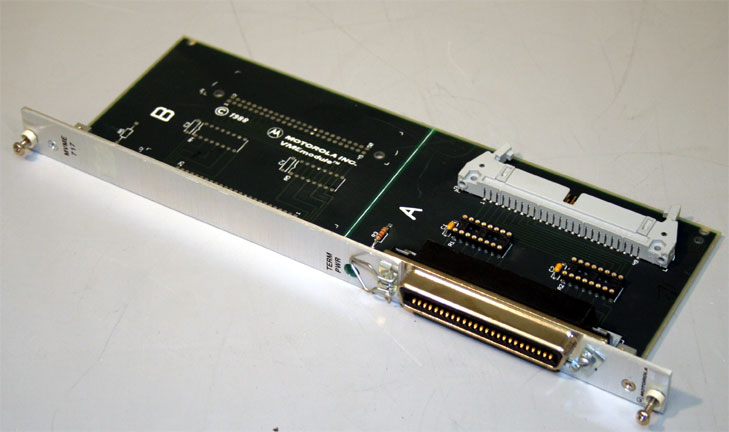

42 MVME 712/M 1 Transition module for MVME147/167/177/187
43 MVME 712A/AM 1 Mainframe Board
44 MVME SCN-EJ 1 Board
--------------------------------------------------------------------------------
Motorola's line of VMEbus products using PowerPC® architecture-compatible processors expands the boundaries for functionality and performance in the VMEbus market. What differentiates this product family is our PowerPlus Architecture. Based on in-house application specific integrated circuits (ASICs) designed for exclusive use in our products, our boards offer unprecedented levels of system performance. This is accomplished by addressing three critical areas: optimizing processor and cache performance, minimizing memory bottlenecks and optimizing system I/O throughput.
Current Motorola VME Inventory:
Motorola Single Board Computer - MVME - 147
16, 25, or 33.33 MHz MC68030 enhanced 32-bit microprocessor
16, 25, or 33.33 MHz MC68882 floating-point coprocessor
4, 8, 16, or 32MB of shared DRAM, with programmable parity
4K x 8 SRAM and time-of-day clock with battery
Four 28/32-pin ROM/PROM/EPROM/EEPROM sockets, 16-bits wide
A32/D32 VMEbus master/slave interface with system controller function
Four EIA-232-D serial communications ports
Centronics® compatible printer port
Two 16-bit timers and watchdog timer
SCSI bus interface with DMA
Ethernet transceiver interface
4-level requester, 7-level interrupter, and 7-level interrupt handler for VMEbus
On-board debugger and diagnostic firmware
Model Number Description Qty
MVME110-1 68000 8 MHZ, 1 CHANNEL, SERIAL, RS232C 12
MVME133 68020 CPU, 12.5Mhz, 1MB memory, 3 Serial ports 1
MVME133-1 68020 CPU, 16.67Mhz, 1MB memory, 3 Serial ports 3
MVME133A-20 68020 CPU, 20Mhz, 1MB memory, 3 Serial ports 1
MVME133SA 68020 CPU, 20Mhz, 1MB memory, 3 Serial ports 7
MVME141-1 68030 CPU, 25Mhz, VSB A32/D32, 2 SIO 1
MVME141-3 68030 CPU, 1
MVME147 68030 CPU, 20Mhz, 4MB memory, 6
MVME147-010 68030 CPU, 16Mhz, 4MB DRAM, 4 SIO, 1 PIO 5
MVME147-010A 68030 CPU, 16.67MHZ, 4MB, SCSI, ETHERNET 4
MVME147-011 68030 CPU, 25Mhz, 4MB memory 15
MVME147-011A 68030 CPU, 25MHZ, 4MB, SCSI, ETHERNET 6
MVME147-012 68030 CPU, 25Mhz, 8MB memory 4
MVME147-012A 68030 CPU, 25Mhz, 8MB memory 1
MVME147-013 68030 CPU, 25Mhz, 16MB memory 29
MVME147-013A 68030 CPU, 25Mhz, 16MB memory 18
MVME147-022 68030 CPU, 32Mhz, 8MB memory 47
MVME147-022A 68030 CPU, 33MHZ, 16MB, SCSI, ETHERNET 14
MVME147-024 68030 CPU, 33MHZ, 16MB 1
MVME147S 68030 CPU, 20MHZ, 4MB 2
MVME147S-1 68030 CPU, 25MHZ, 4MB, SCSI, ETHERNET 43
MVME147SA-1 68030 CPU, 25MHZ, 8MB, SCSI, 6
MVME147SB-1 68030 CPU, 25Mhz, 16MB memory 54
MVME147SB-2 68030 CPU, 32Mhz, 16MB memory 2
MVME147SC-2 68030 CPU, 32Mhz, 32MB memory 1
MVME147SRF 68030 CPU, 16Mhz, 4MB memory 2
--------------------------------------------------------------------------------
Motorola Embedded Controller - MVME - 162
32 MHz MC68040 enhanced 32-bit microprocessor with 8KB of cache, and MMU and FPU
Optional 25 MHz MC68040 32-bit microprocessor with 8KB of cache, MMU, and FPU
Optional 25 MHz MC68LC040 enhanced 32-bit microprocessor with 8KB of cache and MMU
A32/D64 VMEbus master/slave interface with system controller function
High-performance DMA support for VMEbus D64 and local bus memory burst cycles
4, 8 or 16MB of shared DRAM
512KB SRAM with battery backup
1MB Flash memory for on-board monitor/debugger or user installed firmware · 8K x 8 NVRAM and time-of-day clock with battery backup
Two serial communication ports, console port as EIA-232-D DTE and second port user configurable for EIA-232-D/EIA-422 (V.36) DTE/DCE
Four 16- or 32-bit IndustryPack® ports with one DMA channel per port
Six 32-bit timers (four without VMEbus) and watchdog timer
Optional SCSI bus interface with 32-bit local bus burst DMA
Optional Ethernet transceiver interface with 32-bit local bus DMA
One 32-pin PLCC EPROM socket
Four-level requester, seven-level interrupter, and seven-level interrupt handler for VMEbus
Remote RESET/ABORT/STATUS control functions
On-board debugger and diagnostic firmware
MVME162-010A 68040 25MHZ CPU, 4MB, 4 IP, 2 SERIAL 2
MVME162-012 68040 CPU, 25Mhz, 4MB, 4 IP Ports, ETHERNET 5
MVME162-012A 68040 CPU, 25Mhz, 4MB, 4 IP Ports, ETHERNET 10
MVME162-013 68040 CPU, 25Mhz, 4MB, 4 IP Ports, SCSI, ETHERNET 9
MVME162-013A 68040, 25MHz, 4MB, 1MB Flash, SCSI, ETHERNET 1
MVME162-020 68040 25MHZ CPU, 4MB, 4 IP, 2 SERIAL 8
MVME162-022 68040 CPU, 25Mhz, 4MB, 4 IP Ports, ETHERNET 7
MVME162-023 68040 CPU, 25Mhz, 4MB, 4 IP Ports, SCSI, ETHERNET 6
MVME162-023A 68040 CPU, 25Mhz, 4MB, 4 IP Ports, SCSI, ETHERNET 5
MVME162-032 68040 CPU, 25Mhz, 8MB, 4 IP Ports, ETHERNET 34
MVME162-040 68040 CPU, 25Mhz, 8MB, 4 IP Ports 9
MVME162-211 68040, 4 MB DRAM, SCSI 1
MVME162-212 68040 CPU, 25Mhz, 4MB, 2 IP Ports, ETHERNET 62
MVME162-213 68040 CPU, 25Mhz, 4MB, 2 IP Ports, SCSI, ETHERNET 1
MVME162-215 68040 CPU, 25Mhz, 4MB Parity. SCSI 3
MVME162-222 68040 CPU, 25Mhz, 4MB 2
MVME162-223 68040 CPU, 25Mhz, 4MB memory, 2 IP Ports, ETHERNET 2
MVME162-253 68040 CPU, 25Mhz, 16 MB ECC DRAM, SCSI, Ethernet 17
MVME162-263 68040 CPU, 25Mhz, 16MB memory, 2 IP Ports, ETHERNET 7
MVME162-410 68040 CPU, 25Mhz, 16MB memory, 2 SIO, 4 DMA IP 12
MVME162-412 68040 CPU, 25MHz, 4MB, ETHERNET 1
MVME162-432 68040 CPU, 25MHz, 8MB, 4-IP,ETHERNET 1
MVME162-433 68040 CPU, 25MHZ, 8MB, 4-IP, SCSI, ETHERNET 3
MVME162-510A 68040 CPU, 32MHz, 4MB DRAM, 2SIO, 4 DMA IP 2
MVME162-512A 68040 CPU, 32MHZ, 4MB, 4-IP, ETHERNET 5
MVME162-522A 68040 CPU, 8MB, 2 serial, 1MB Flash, Ethernet, SCSI 77
MVME162-523 68040 CPU, 8MB, 2 serial, 1MB Flash, Ethernet, SCSI 1
MVME162-532A 68040 CPU, 32Mhz, 8MB, 4 IP, 2 Serial, SCSI, ETHERNET 1
MVME162P-242LE 68040 CPU, 25 MHz, 16 MB SDRAM, Ethernet 1
MVME162P-242LSE 68040 CPU, 25 MHz, 16 MB SDRAM, SCSI, Ethernet 1
MVME162P-244LE 68040 CPU, 25Mhz, 16MB, 2 SIO, 4 DMA IP, Ethernet 1
MVME162P-252SE 68040 CPU, 25 MHz, 32 MB SDRAM, SCSI, Ethernet 1
MVME162P-344 68040 CPU, 32Mhz, 16MB SDRAM, 2 SIO, 4 DMA IP 1
MVME162P-344E 68040 CPU, 32Mhz, 16MB, 2 SIO, 4 DMA IP, Ethernet 1
MVME162PA-242LE 68040 CPU, 25MHz, 16MB SDRAM, 2DMA IP, Ethernet 1
MVME162PA-244L 68040 CPU, 25MHZ, 16MB SDRAM, 2 SERIAL 1
MVME162PA-244LE 68040 CPU, 25MHZ, 16MB SDRAM, 2 SERIAL, ENET 1
MVME162PA-244LSE 68040 CPU, 25Mhz, 16MB, 2 SIO, 4 DMA IP, SCSI, ENET 1
MVME162PA-344B 68040 CPU, 25MHZ, 16MB SDRAM, 2 SERIAL 6
MVME162PA-344E 68040 CPU, 25MHZ, 16MB SDRAM, 2 SERIAL 2
MVME162-512A 68040 CPU, 32Mhz, 4MB, ENET 2
--------------------------------------------------------------------------------
Motorola Single Board Computer - MVME - 167
25 or 33 MHz MC68040 32-bit microprocessor with 8KBof cache, MMU, and FPU
Full 32-bit master/slave VMEbus interface
High performance DMA supports VMEbus D64 and local bus memory burst cycles
4, 8, 16, 32 or 64MB on-board DRAM, four-way interleaved, with parity checking
Checking and Correction (ECC) option
On-board SCSI interface with 32-bit local bus burst DMA
On-board Ethernet interface with 32-bit local bus DMA
Four 44-pin sockets for up to 4MB on-board ROM/EPROM
Four EIA-232-D serial ports implemented with quad serial I/O processor
8-bit, bidirectional, Centronics® compatible parallel port
Four 32-bit timers and one watchdog timer
8KB of NVRAM with real-time clock/calendar
Remote Reset/Abort/Status control functions
Completely programmable for maximum integration flexibility
Low power consumption—less than 20 watts typical
MVME165 68040 CPU, 25Mhz, 4MB memory, VSB, 2 serial ports 1
MVME167 Various options and configs, see below.. 5
MVME167-04A 68040U CPU, 25Mhz, 32MB 2
MVME167-031A 68040 CPU, 33Mhz, FPU, Ethernet, SCSI, DMA 3
MVME167-032B 68040 CPU, 33Mhz, 8KB, MMU, FPU, 8MB, ENET, SCSI 4
MVME167-033A 68040 CPU, 33Mhz, 8KB, MMU, FPU, 16MB, ENET, SCSI 2
MVME167-033B 68040 CPU, 33Mhz, 8KB, MMU, FPU, 16MB, ENET, SCSI 1
MVME167-034A 68040 CPU, 33Mhz, 8KB, MMU, FPU, 32MB, ENET, SCSI 2
MVME167-34B 68040 CPU, 33Mhz,8KB, MMU, FPU, 32MB, ENET, SCSI 15
MVME167-034B 68040 CPU, 33Mhz,8KB, MMU, FPU, 32MB, ENET, SCSI 15
MVME167-035B |
